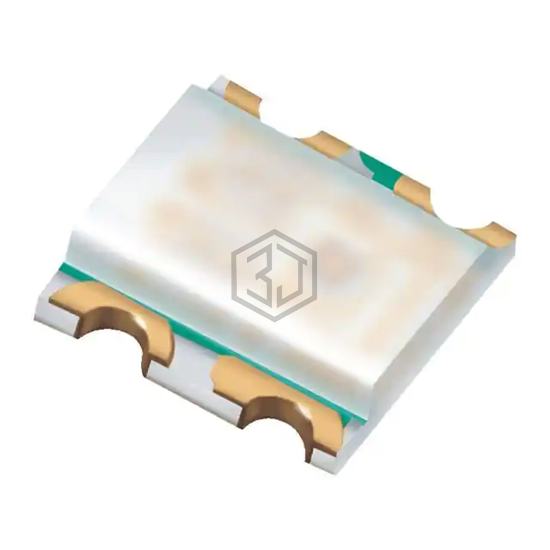

PCB TOP VIEW SMD LED - TRI COLOR
EAST1616RGBA4 is a LED Indication - Discrete manufactured by Everlight Electronics Co Ltd. PCB TOP VIEW SMD LED - TRI COLOR. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.05V Red, 3.25V Green, 3.25V Blue, package / case 0606 (1616 Metric), color Red, Green, Blue (RGB).
In Stock: 19,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 100mcd Red, 180mcd Green, 50mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.10mm |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.25V Green, 3.25V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 518nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.45mm |
Submit your RFQ for EAST1616RGBA4 and get a quote within 24 hours.
