SIGNAGE RGBW PCB TOP VIEW SMD LE

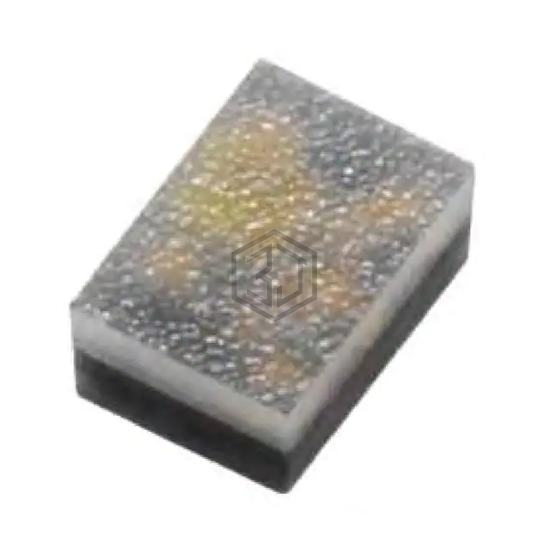

EAST1410RGBW02 is a LED Indication - Discrete manufactured by Everlight Electronics Co Ltd. SIGNAGE RGBW PCB TOP VIEW SMD LE. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.75V Red, 2.4V Green, 2.7V Blue, 2.7V White, package / case 0504 (1410 Metric), color Red, Green, Blue, White (RGBW).
In Stock: 7,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue, White (RGBW) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 5.75mcd Red, 44mcd Green, 10.5mcd Blue, 20mcd White |
| Lens Style | Square with Flat Top |
| Lens Size | 0.65mm x 0.65mm |
| Voltage - Forward (Vf) (Typ) | 1.75V Red, 2.4V Green, 2.7V Blue, 2.7V White |
| Current - Test | 1mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 531nm Green, 471nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0504 (1410 Metric) |
| Supplier Device Package | 0504 |
| Size / Dimension | 1.45mm L x 1.00mm W |
| Height (Max) | 0.75mm |
Submit your RFQ for EAST1410RGBW02 and get a quote within 24 hours.
