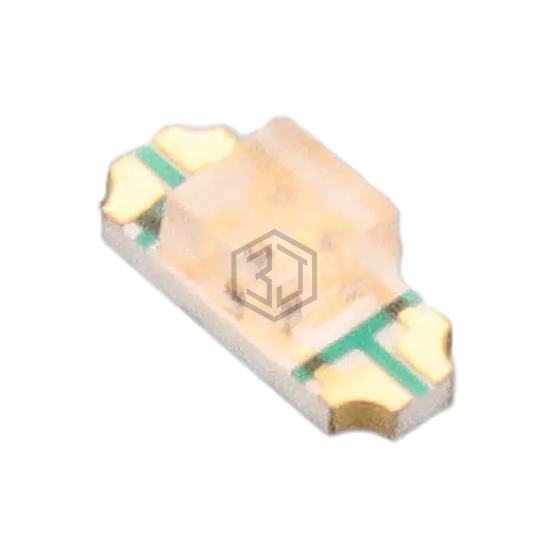

REC FLAT TOP REV MT SMD LED RGB
EASR3212RGBA0 is a LED Indication - Discrete manufactured by Everlight Electronics Co Ltd. REC FLAT TOP REV MT SMD LED RGB. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.3V Green, 3.3V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 45,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 100mcd Red, 200mcd Green, 65mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.20mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 518nm Green, 468nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 1.25mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for EASR3212RGBA0 and get a quote within 24 hours.
