LED GREEN/RED CLEAR CHIP SMD

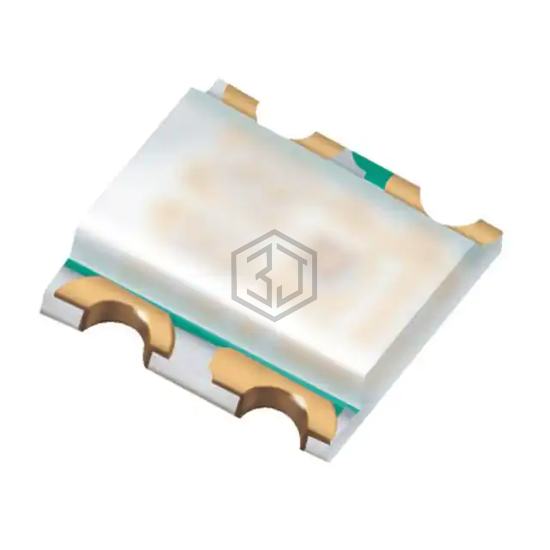

19-22SURSYGC/S530-A3/E2/TR8 is a LED Indication - Discrete manufactured by Everlight Electronics Co Ltd. LED GREEN/RED CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Green, 2V Red, package / case 2-SMD, No Lead, color Green, Red.
In Stock: 8,537
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 24mcd Green, 56mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 573nm Green, 624nm Red |
| Wavelength - Peak | 575nm Green, 632nm Red |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.90mm L x 1.60mm W |
| Height (Max) | 0.80mm |
Submit your RFQ for 19-22SURSYGC/S530-A3/E2/TR8 and get a quote within 24 hours.
