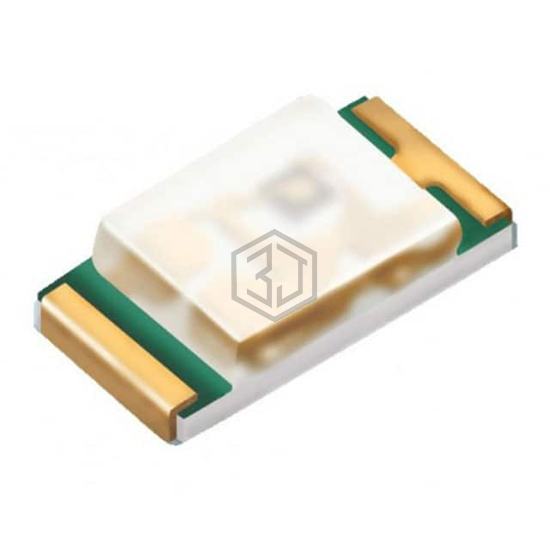

LED YELLOW/GREEN DIFFUSED 2SMD
19-213SYGW/S5888/TR8 is a LED Indication - Discrete manufactured by Everlight Electronics Co Ltd. LED YELLOW/GREEN DIFFUSED 2SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.85V, package / case 0603 (1608 Metric), color Yellow-Green.
In Stock: 20,632
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Color | Yellow-Green |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 3mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm |
| Wavelength - Peak | 575nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.70mm |
Submit your RFQ for 19-213SYGW/S5888/TR8 and get a quote within 24 hours.
