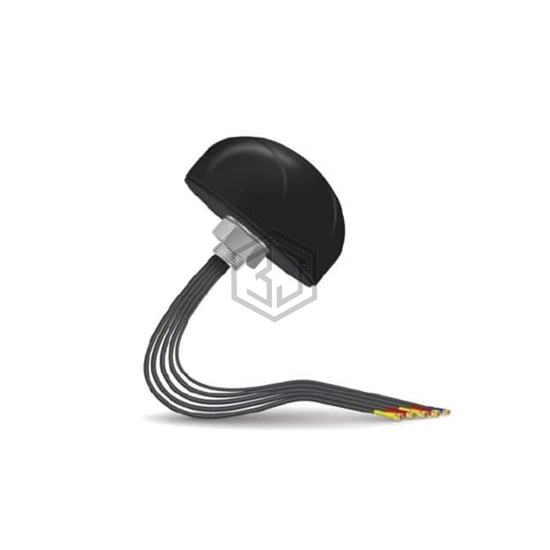

ANTENNA GNSS / LTE MIMO / WIFI
X1005324-LWS5SX10A2 is a RF Antennas manufactured by Ethertronics/AVX. ANTENNA GNSS / LTE MIMO / WIFI. Key specifications: mounting type Adhesive, termination SMA Male (2), RP-SMA Male (1), ingress protection IPX7, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz, 2.45GHz, 5.4875GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz |
| Antenna Type | Dome |
| Number of Bands | 8 |
| VSWR | 1.8, 2, 3.5 |
| Return Loss | - |
| Gain | 3.8dBi, 3dBi, 3dBi, 3.5dBi, 4.9dBi, 4.1dBi, 4.6dBi, 6.6dBi |
| Power - Max | - |
| Features | Cable - 1m, LNA |
| Termination | SMA Male (2), RP-SMA Male (1) |
| Ingress Protection | IPX7 |
| Mounting Type | Adhesive |
| Height (Max) | 2.500" (63.50mm) |
| Applications | GLONASS, GPS, GNSS, LTE, Wi-Fi |
Submit your RFQ for X1005324-LWS5SX10A2 and get a quote within 24 hours.
