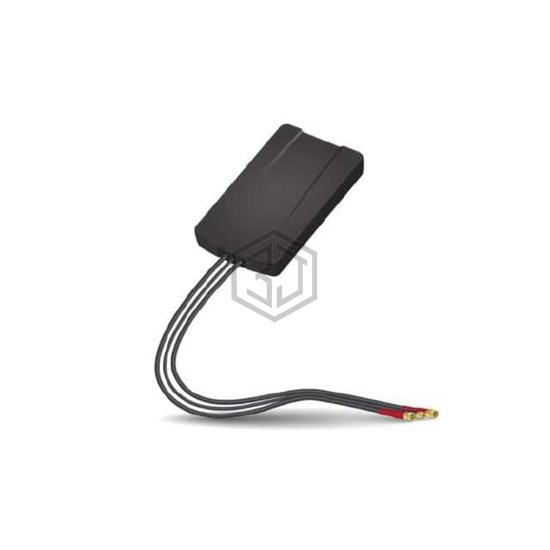

ANTENNA GNSS / LTE MIMO
X1005245-LSA3SA10A2 is a RF Antennas manufactured by Ethertronics/AVX. ANTENNA GNSS / LTE MIMO. Key specifications: mounting type Adhesive, termination SMA Male (2), ingress protection IPX7, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz.
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | 2, 3 |
| Return Loss | - |
| Gain | 4.5dBi, 1.1dBi, 2.1dBi, 2.3dBi, 4.2dBi, 3.7dBi |
| Power - Max | - |
| Features | Cable - 1m, LNA |
| Termination | SMA Male (2) |
| Ingress Protection | IPX7 |
| Mounting Type | Adhesive |
| Height (Max) | 0.500" (12.70mm) |
| Applications | GLONASS, GPS, GNSS, LTE |
Submit your RFQ for X1005245-LSA3SA10A2 and get a quote within 24 hours.
