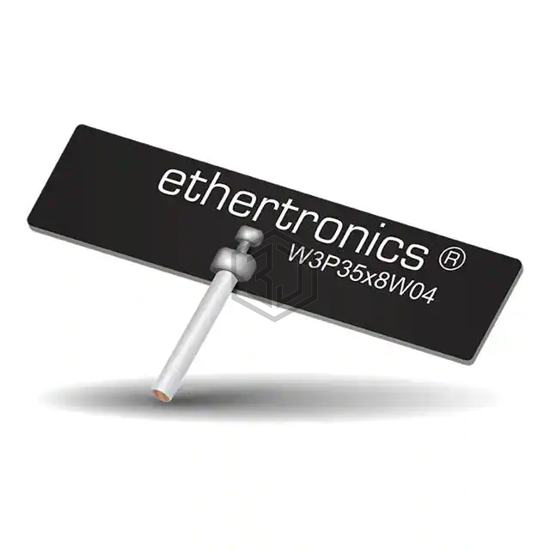

ANT ASSY, WLAN 04 100 D0230
W3P35X8W04-U100D3B0A is a RF Antennas manufactured by Ethertronics/AVX. ANT ASSY, WLAN 04 100 D0230. Key specifications: mounting type Adhesive, termination U.FL, frequency range 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.825GHz ~ 7.125GHz.
In Stock: 1,407
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 2.44GHz, 5.5GHz, 6.475GHz |
| Frequency Range | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.825GHz ~ 7.125GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 3 |
| VSWR | - |
| Return Loss | -15dB, -10dB, -6dB |
| Gain | 2.3dBi, 5dBi, 2.5dBi |
| Power - Max | - |
| Features | Cable - 100mm |
| Termination | U.FL |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.016" (0.40mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
Submit your RFQ for W3P35X8W04-U100D3B0A and get a quote within 24 hours.
