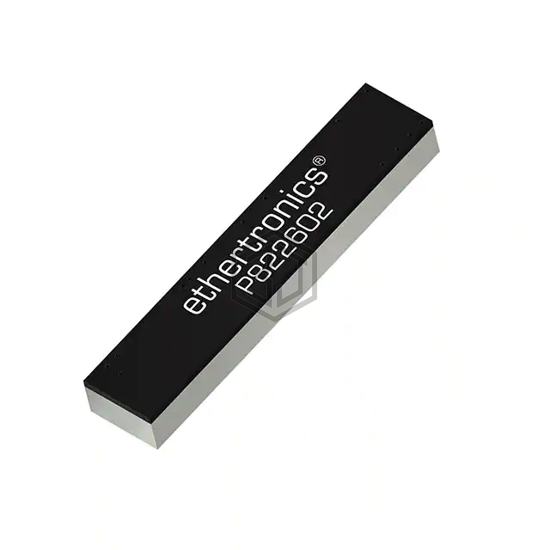

RF ANT 700MHZ/750MHZ FLAT BAR
P822602 is a RF Antennas manufactured by Ethertronics/AVX. RF ANT 700MHZ/750MHZ FLAT BAR. Key specifications: mounting type Surface Mount, termination Solder, power - max 2 W, frequency range 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz.
In Stock: 10,623
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz |
| Frequency Range | 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 8 |
| VSWR | 2.5 |
| Return Loss | - |
| Gain | 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi |
| Power - Max | 2 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.126" (3.20mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
Submit your RFQ for P822602 and get a quote within 24 hours.
