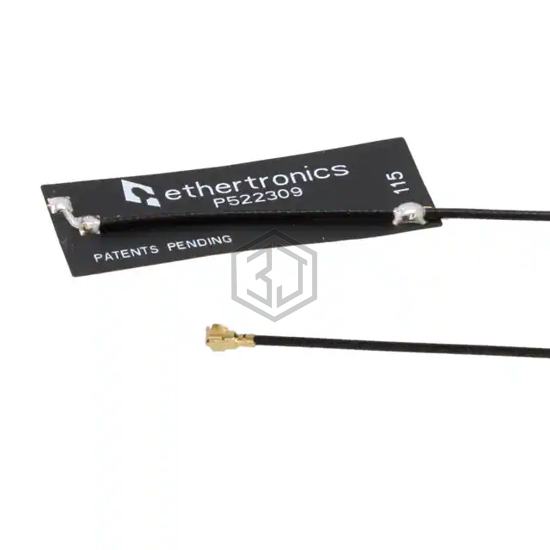

P522309 - Ethertronics/AVX - RF Antennas

P522309

Ethertronics/AVX

RF ANT 850MHZ/900MHZ FLAT PATCH

P522309 is a RF Antennas manufactured by Ethertronics/AVX. RF ANT 850MHZ/900MHZ FLAT PATCH. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 2 W, frequency range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz.

In Stock: 8,225

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular
Frequency GroupWide Band
Frequency (Center/Band)850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna TypeFlat Patch
Number of Bands5
VSWR3
Return Loss-
Gain2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi
Power - Max2 W
FeaturesCable - 100mm
TerminationU.FL (UMCC), IPEX MHF1
Ingress Protection-
Mounting TypeAdhesive
Height (Max)0.049" (1.25mm)
ApplicationsCDMA, DCS, GSM, PCS, UMTS, WCDMA

Frequently Asked Questions

P522309 is a RF Antennas manufactured by Ethertronics/AVX. RF ANT 850MHZ/900MHZ FLAT PATCH

The mounting type of P522309 is Adhesive.

The termination type of P522309 is U.FL (UMCC), IPEX MHF1.

The power rating of P522309 is 2 W.
