1004322

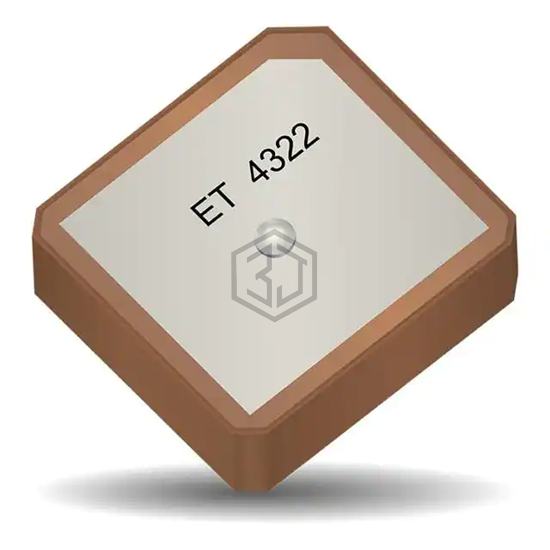

ANTENNA CERAMIC, GPSGB 18X18
1004322 is a RF Antennas manufactured by Ethertronics/AVX. ANTENNA CERAMIC, GPSGB 18X18. Key specifications: mounting type Adhesive, termination Pin, frequency range 1.559GHz ~ 1.61GHz.
In Stock: 43
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.561GHz, 1.6015GHz |
| Frequency Range | 1.559GHz ~ 1.61GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 3 |
| VSWR | 1.2, 1.3 |
| Return Loss | - |
| Gain | 3.12dBi, 4.06dBi, 3.89dBi, 3.92dBi |
| Power - Max | - |
| Features | - |
| Termination | Pin |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.185" (4.70mm) |
| Applications | Beidou, Galileo, GLONASS, GPS |
Frequently Asked Questions
1004322 is a RF Antennas manufactured by Ethertronics/AVX. ANTENNA CERAMIC, GPSGB 18X18
The mounting type of 1004322 is Adhesive.
The termination type of 1004322 is Pin.
The frequency of 1004322 is 1.559GHz ~ 1.61GHz.
