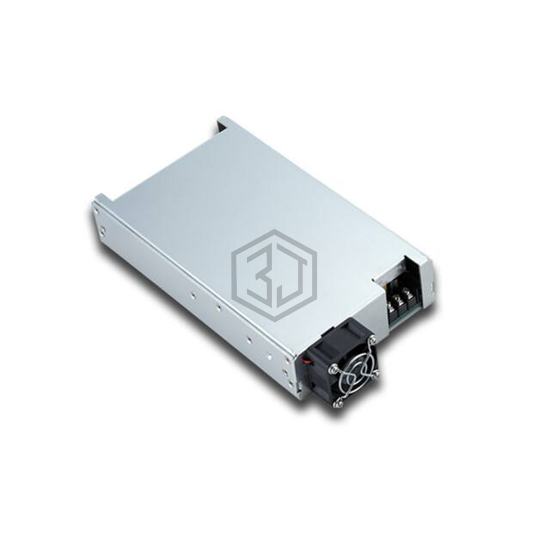

AC/DC CONVERTER 24V 360W
ZWF360-24SX-F-W is a AC DC Converters manufactured by ETA-USA. AC/DC CONVERTER 24V 360W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 8.00" L x 4.67" W x 2.60" H (203.2mm x 118.5mm x 66.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 360W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 86% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.00" L x 4.67" W x 2.60" H (203.2mm x 118.5mm x 66.0mm) |
| Approval Agency | CB, CE, CSA, FCC, TUV, UL |
| Standard Number | - |
Submit your RFQ for ZWF360-24SX-F-W and get a quote within 24 hours.
