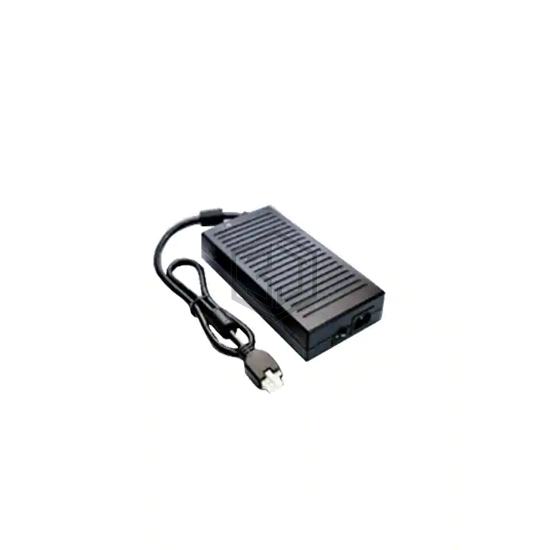

AC/DC DESKTOP ADAPTER 48V 300W
DTMF300-48SX-F-W6 is a AC DC Desktop, Wall Adapters manufactured by ETA-USA. AC/DC DESKTOP ADAPTER 48V 300W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 6.25A, size / dimension 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I), Desktop (Class II) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 300 W |
| No Load Power Consumption | 500mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Rectangular, 10 Position |
| Cord Length | 31.5" (0.8m) |
| Input Connector | IEC 320-C14, IEC 320-C18 |
| Features | - |
| Size / Dimension | 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm) |
| Approval Agency | CCC, CE, TUV, UL |
| Standard Number | - |
Submit your RFQ for DTMF300-48SX-F-W6 and get a quote within 24 hours.
