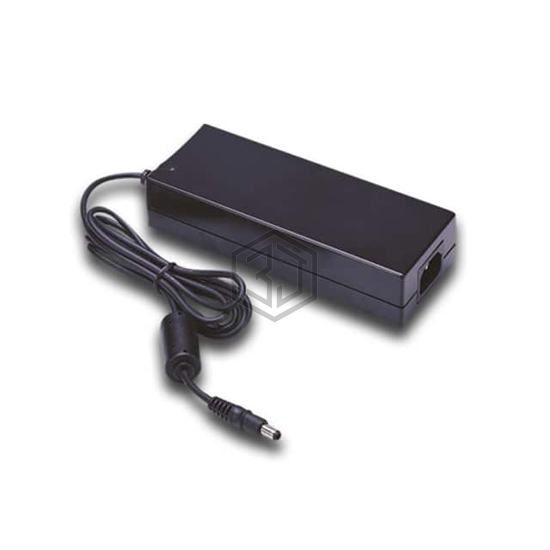

AC/DC DESKTOP ADAPTER 24V 120W
DTD120-24SX-F-W6 is a AC DC Desktop, Wall Adapters manufactured by ETA-USA. AC/DC DESKTOP ADAPTER 24V 120W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 5A, size / dimension 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm).
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 5A |
| Power (Watts) | 120 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 39.4" (1.00m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) |
| Approval Agency | CE, CSA, TUV, UL |
| Standard Number | - |
