AC/DC DSKTP ADAPTER 5V +/-12 57W

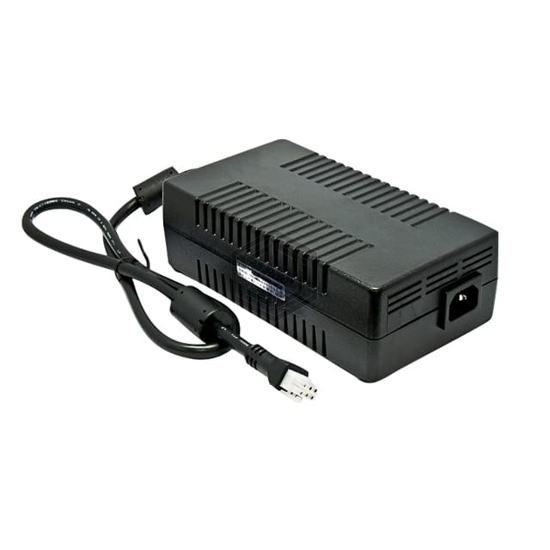

DTB47-3X-W is a AC DC Desktop, Wall Adapters manufactured by ETA-USA. AC/DC DSKTP ADAPTER 5V +/-12 57W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 7A, 1.5A, 300mA, size / dimension 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V, 12V, -12V |
| Current - Output (Max) | 7A, 1.5A, 300mA |
| Power (Watts) | 57 W |
| No Load Power Consumption | - |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | 70% |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Power DIN, 8 Pin |
| Cord Length | 41.34" (1.05m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) |
| Approval Agency | CB, CE, CSA, FCC, TUV, UL |
| Standard Number | - |
Submit your RFQ for DTB47-3X-W and get a quote within 24 hours.
