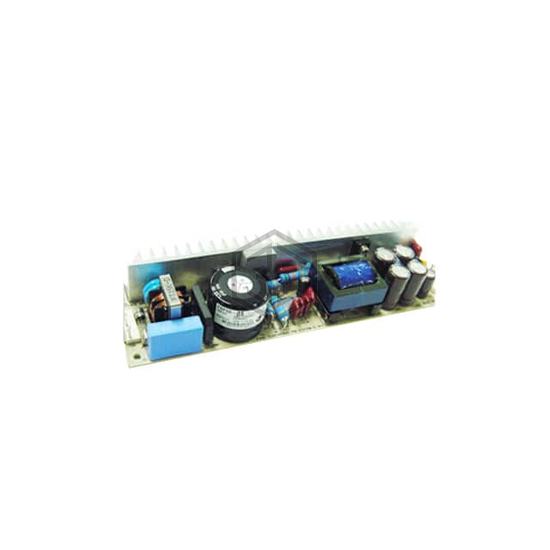

AC/DC CONVERTER 24V 50W
AOBN50-24 is a AC DC Converters manufactured by ETA-USA. AC/DC CONVERTER 24V 50W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 50°C (With Derating), voltage - input 85 ~ 264 VAC, 125 ~ 370 VDC, size / dimension 7.68" L x 2.17" W x 1.06" H (195.0mm x 55.0mm x 27.0mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 125 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 50W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 80% |
| Operating Temperature | -10°C ~ 50°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.68" L x 2.17" W x 1.06" H (195.0mm x 55.0mm x 27.0mm) |
| Approval Agency | CE, cUL, FCC, UL |
| Standard Number | - |
