SMD MODULE, ESP32-S3R8 WITH 1.8V

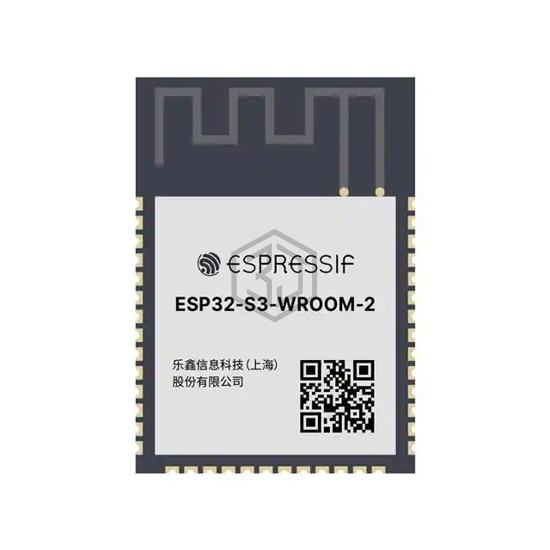

ESP32-S3-WROOM-2-N32R8V is a RF Transceiver Modules and Modems manufactured by Espressif Systems. SMD MODULE, ESP32-S3R8 WITH 1.8V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 65°C (TA), voltage - supply 3V ~ 3.6V, package / case 41-SMD Module.
In Stock: 1,299
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 150Mbps |
| Power - Output | 20.5dBm |
| Sensitivity | -103.5dBm |
| Serial Interfaces | ADC, DAC, GPIO, I²C, I²S, SPI, PWM, RMT, UART, USB |
| Antenna Type | PCB Trace |
| Utilized IC / Part | ESP32-S3R8V |
| Memory Size | 32MB Flash, 8MB SRAM |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 95mA ~ 97mA |
| Current - Transmitting | 285mA ~ 355mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 65°C (TA) |
| Package / Case | 41-SMD Module |
Submit your RFQ for ESP32-S3-WROOM-2-N32R8V and get a quote within 24 hours.
