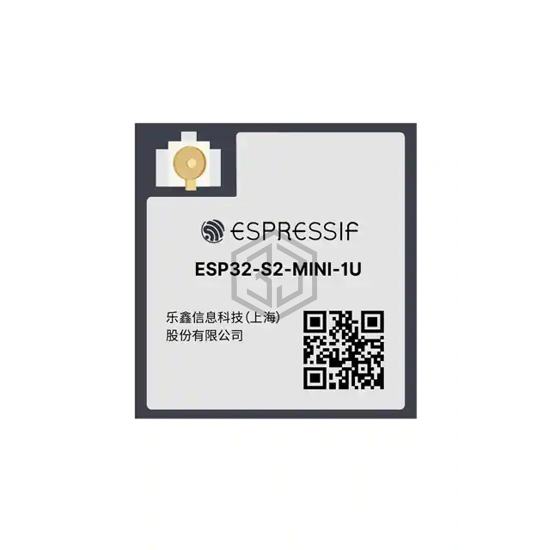

SMD MODULE, ESP32-S2FN4R2 WITH 4
ESP32-S2-MINI-1U-N4R2 is a RF Transceiver Modules and Modems manufactured by Espressif Systems. SMD MODULE, ESP32-S2FN4R2 WITH 4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 3V ~ 3.6V, package / case 65-SMD Module.
In Stock: 6,817
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| RF Family/Standard | WiFi |
| Protocol | 802.11b/g/n |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 150Mbps |
| Power - Output | 19.5dBm |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB |
| Antenna Type | PCB Trace + IPEX |
| Utilized IC / Part | ESP32-S2FN4R2 |
| Memory Size | 6MB Flash, 128kB ROM, 336kB SRAM |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 63mA ~ 68mA |
| Current - Transmitting | 160mA ~ 310mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 65-SMD Module |
Submit your RFQ for ESP32-S2-MINI-1U-N4R2 and get a quote within 24 hours.
