SMD MODULE W/IPEX ANT CONNECTOR

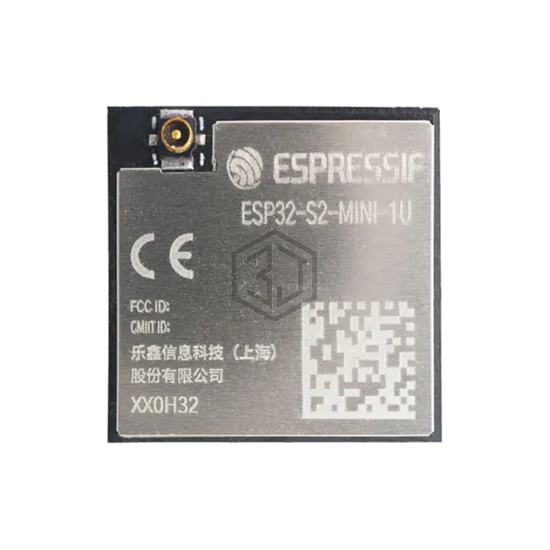

ESP32-S2-MINI-1U-N4 is a RF Transceiver Modules and Modems manufactured by Espressif Systems. SMD MODULE W/IPEX ANT CONNECTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 3.6V, package / case 65-SMD Module.
In Stock: 1,509
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| RF Family/Standard | WiFi |
| Protocol | 802.11b/g/n |
| Modulation | - |
| Frequency | 2.412GHz ~ 2.484GHz |
| Data Rate | 150Mbps |
| Power - Output | 19.5dBm |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | ESP32-S2 |
| Memory Size | 128kB ROM, 320kB SRAM |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 63mA ~ 68mA |
| Current - Transmitting | 160mA ~ 310mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 65-SMD Module |
Submit your RFQ for ESP32-S2-MINI-1U-N4 and get a quote within 24 hours.
