SIP MODULE WIFI BLE COMBO

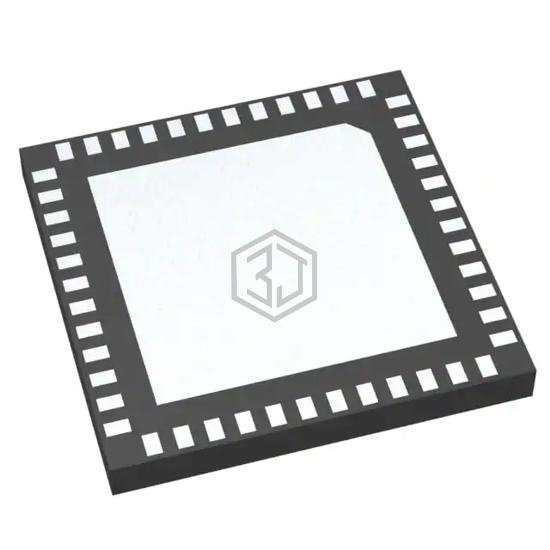

ESP32-PICO-V3-02 is a RF Transceiver Modules and Modems manufactured by Espressif Systems. SIP MODULE WIFI BLE COMBO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 3.6V, package / case 48-LFQFN Exposed Pad.
In Stock: 1,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n, Bluetooth v4.2 |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate | 150Mbps |
| Power - Output | 19.5dBm |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART |
| Antenna Type | Antenna Not Included, I-PEX |
| Utilized IC / Part | ESP32 |
| Memory Size | 8MB Flash, 2MB SRAM |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 111mA ~ 117mA |
| Current - Transmitting | 205mA ~ 385mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-LFQFN Exposed Pad |
Submit your RFQ for ESP32-PICO-V3-02 and get a quote within 24 hours.
