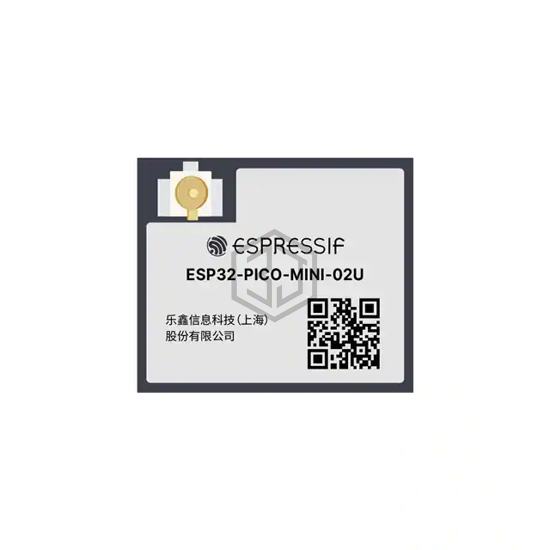

SMD MODULE, ESP32-PICO-V3-02 WIT
ESP32-PICO-MINI-02U-N8R2 is a RF Transceiver Modules and Modems manufactured by Espressif Systems. SMD MODULE, ESP32-PICO-V3-02 WIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 3V ~ 3.6V, package / case 53-SMD Module.
In Stock: 6,160
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 |
| Modulation | 8DPSK, DQPSK |
| Frequency | 2.4GHz |
| Data Rate | 150Mbps |
| Power - Output | 19.5dBm |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART |
| Antenna Type | PCB Trace |
| Utilized IC / Part | ESP32-PICO-V3-02 |
| Memory Size | 8MB Flash, 2MB PSRAM, 448kB ROM, 536kB SRAM |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 111mA ~ 117mA |
| Current - Transmitting | 248mA ~ 368mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 53-SMD Module |
Submit your RFQ for ESP32-PICO-MINI-02U-N8R2 and get a quote within 24 hours.
