SMD MODULE, ESP32-U4WDH WITH 4 M

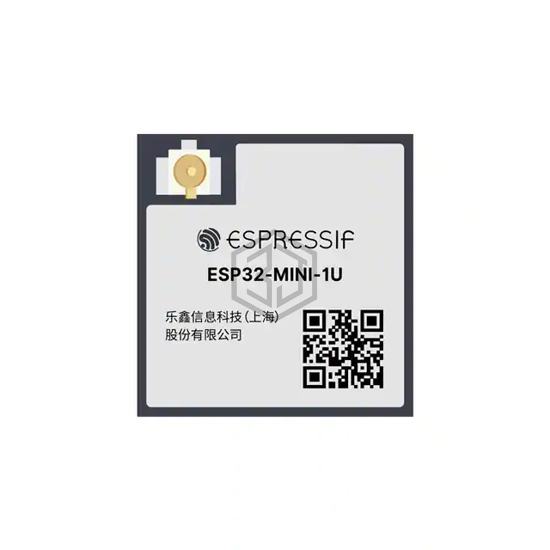

ESP32-MINI-1U-N4 is a RF Transceiver Modules and Modems manufactured by Espressif Systems. SMD MODULE, ESP32-U4WDH WITH 4 M. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 3V ~ 3.6V, package / case 55-SMD Module.
In Stock: 5,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 |
| Modulation | 8DPSK, DQPSK |
| Frequency | 2.4GHz |
| Data Rate | 150Mbps |
| Power - Output | 19.5dBm |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART |
| Antenna Type | PCB Trace |
| Utilized IC / Part | ESP32-U4WDH |
| Memory Size | 4MB Flash, 448kB ROM, 536kB SRAM |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Receiving | 112mA ~ 118mA |
| Current - Transmitting | 260mA ~ 379mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 55-SMD Module |
Submit your RFQ for ESP32-MINI-1U-N4 and get a quote within 24 hours.
