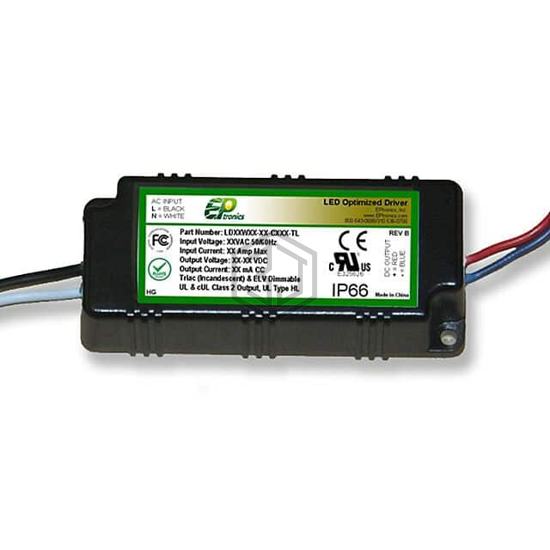

LED DRIVER AC/DC CC 12-20V 350MA
LD6W230-20-C0350-TL is a LED Drivers manufactured by EPtronics, Inc.. LED DRIVER AC/DC CC 12-20V 350MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 12 ~ 20V, current - output (max) 350mA, size / dimension 3.35" L x 1.42" W x 0.91" H (85.1mm x 36.1mm x 23.1mm).
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 208VAC |
| Voltage - Input (Max) | 300VAC |
| Voltage - Output | 12 ~ 20V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | ELV, Triac |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 81% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.35" L x 1.42" W x 0.91" H (85.1mm x 36.1mm x 23.1mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
Submit your RFQ for LD6W230-20-C0350-TL and get a quote within 24 hours.
