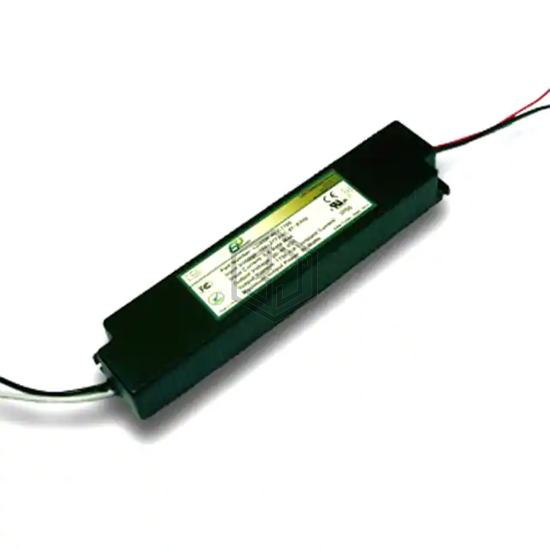

LED DRIVER AC/DC CC 4-12V 4.2A
LD50W-12-C4200-RD is a LED Drivers manufactured by EPtronics, Inc.. LED DRIVER AC/DC CC 4-12V 4.2A. Key specifications: operating temperature -30°C ~ 50°C, voltage - output 4 ~ 12V, current - output (max) 4.2A, size / dimension 7.64" L x 1.69" W x 0.98" H (194.1mm x 42.9mm x 24.9mm).
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 4 ~ 12V |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 50 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 50°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.64" L x 1.69" W x 0.98" H (194.1mm x 42.9mm x 24.9mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
Submit your RFQ for LD50W-12-C4200-RD and get a quote within 24 hours.
