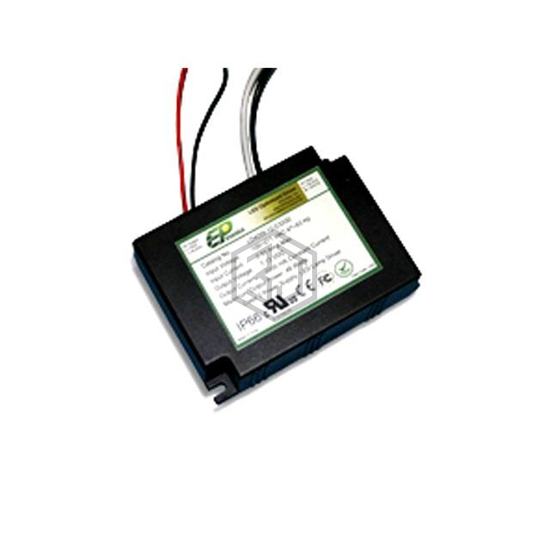

LED DRIVER AC/DC CC 6-18V 2.2A
LD40W-18-C2200 is a LED Drivers manufactured by EPtronics, Inc.. LED DRIVER AC/DC CC 6-18V 2.2A. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 6 ~ 18V, current - output (max) 2.2A, size / dimension 3.78" L x 2.80" W x 1.26" H (96.0mm x 71.1mm x 32.0mm).
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 6 ~ 18V |
| Current - Output (Max) | 2.2A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.78" L x 2.80" W x 1.26" H (96.0mm x 71.1mm x 32.0mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
Submit your RFQ for LD40W-18-C2200 and get a quote within 24 hours.
