LED DRIVER AC/DC CV 54V 700MA

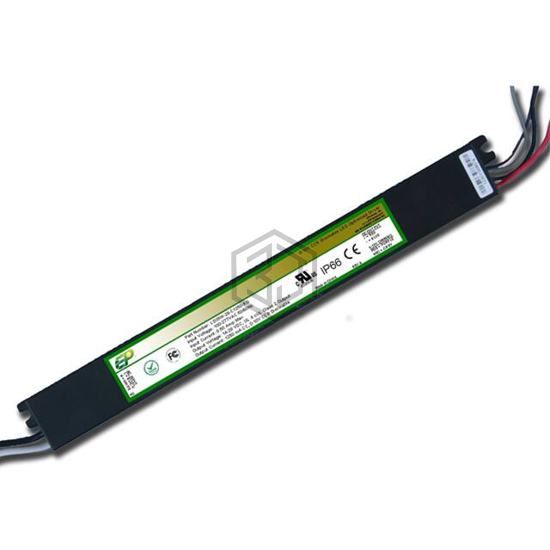

LD35W-54 is a LED Drivers manufactured by EPtronics, Inc.. LED DRIVER AC/DC CV 54V 700MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 54V, current - output (max) 700mA, size / dimension 8.39" L x 1.05" W x 1.02" H (213.1mm x 26.7mm x 25.9mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 54V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 38 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OVP, SCP |
| Ratings | IP65 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 85% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.39" L x 1.05" W x 1.02" H (213.1mm x 26.7mm x 25.9mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
