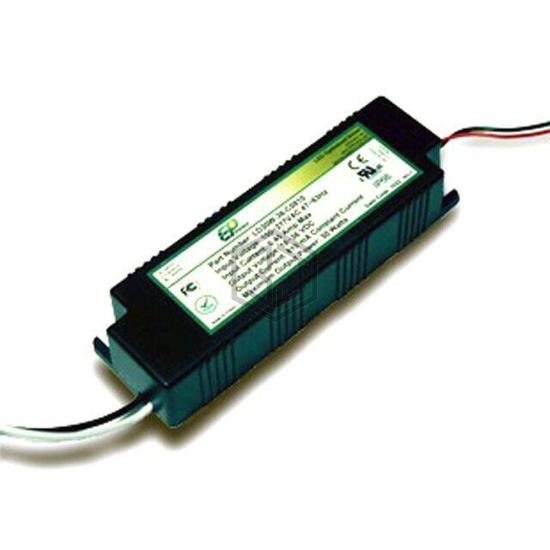

LED DRIVER AC/DC CV 36V 830MA
LD30W-36 is a LED Drivers manufactured by EPtronics, Inc.. LED DRIVER AC/DC CV 36V 830MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 36V, current - output (max) 830mA, size / dimension 5.31" L x 1.69" W x 0.98" H (134.9mm x 42.9mm x 24.9mm).
In Stock: 9,348
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 36V |
| Current - Output (Max) | 830mA |
| Power (Watts) | 30 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.31" L x 1.69" W x 0.98" H (134.9mm x 42.9mm x 24.9mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
