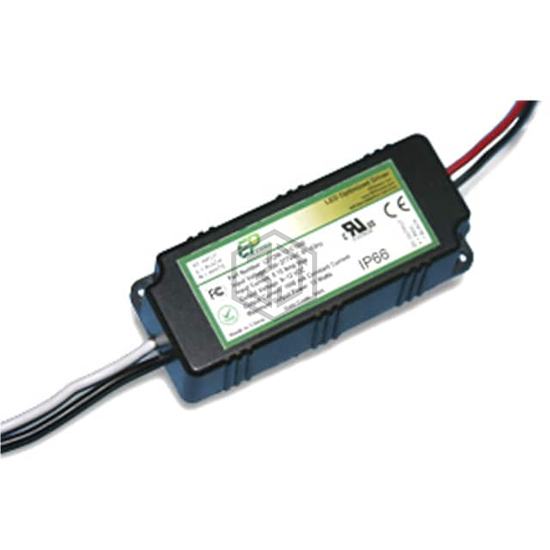

LED DRIVER AC/DC CV 24V 500MA
LD12W-24 is a LED Drivers manufactured by EPtronics, Inc.. LED DRIVER AC/DC CV 24V 500MA. Key specifications: operating temperature -30°C ~ 50°C, voltage - output 24V, current - output (max) 500mA, size / dimension 3.35" L x 1.42" W x 0.91" H (85.1mm x 36.1mm x 23.1mm).
In Stock: 218
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 500mA |
| Power (Watts) | 12 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 50°C |
| Efficiency | 78% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.35" L x 1.42" W x 0.91" H (85.1mm x 36.1mm x 23.1mm) |
| Approval Agency | CE, cURus, FCC |
| Standard Number | - |
Submit your RFQ for LD12W-24 and get a quote within 24 hours.
