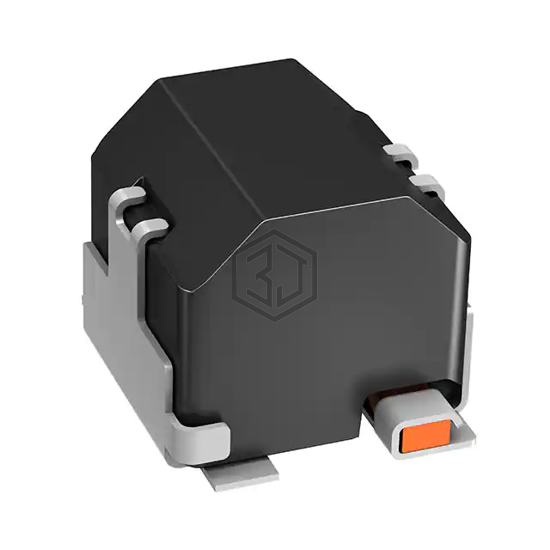

FIXED IND 4.7UH 20.6A 4.3OHM SMD
PCM120T-4R7M-D is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 4.7UH 20.6A 4.3OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 165°C, package / case Nonstandard, current rating (amps) 20.6 A.
In Stock: 245
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20.6 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.3Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 165°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.500" W (12.00mm x 12.70mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
Submit your RFQ for PCM120T-4R7M-D and get a quote within 24 hours.
