CURR SENSE XFMR 1:150 SMD

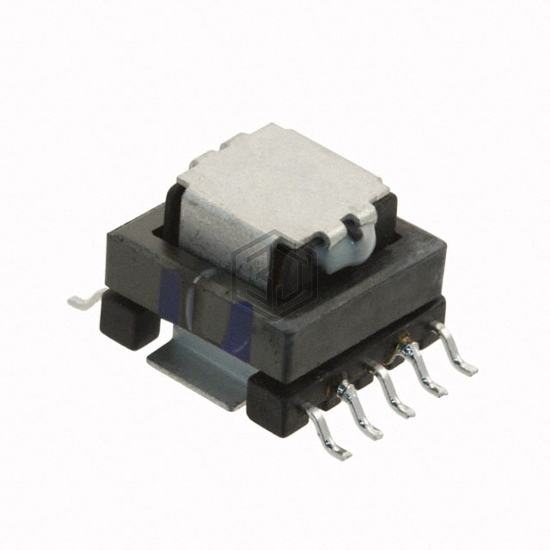

B82801C1265A150 is a Current Sense Transformers manufactured by EPCOS - TDK Electronics. CURR SENSE XFMR 1:150 SMD. Key specifications: mounting type Surface Mount, size / dimension 0.560" L x 0.530" W (14.22mm x 13.46mm), termination style Gull Wing, frequency range 50kHz ~ 500kHz.
In Stock: 8,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 500kHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 12.6 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:150 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.28mOhm Primary, 2.2Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.560" L x 0.530" W (14.22mm x 13.46mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Termination Style | Gull Wing |
Submit your RFQ for B82801C1265A150 and get a quote within 24 hours.
