CURR SENSE XFMR 1:70 SMD

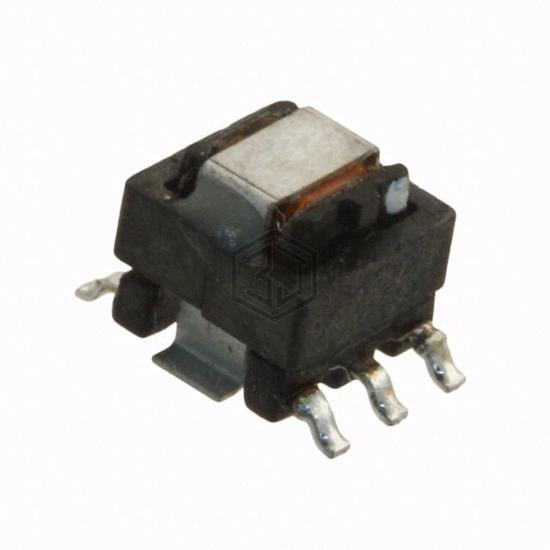

B82801B0984A070 is a Current Sense Transformers manufactured by EPCOS - TDK Electronics. CURR SENSE XFMR 1:70 SMD. Key specifications: mounting type Surface Mount, size / dimension 0.280" L x 0.320" W (7.11mm x 8.13mm), termination style Gull Wing, frequency range 50kHz ~ 1MHz.
In Stock: 2,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 980 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:70 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.8mOhm Primary, 4.75Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.280" L x 0.320" W (7.11mm x 8.13mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Termination Style | Gull Wing |
Submit your RFQ for B82801B0984A070 and get a quote within 24 hours.
