CURR SENSE XFMR 1:200 20A SMD

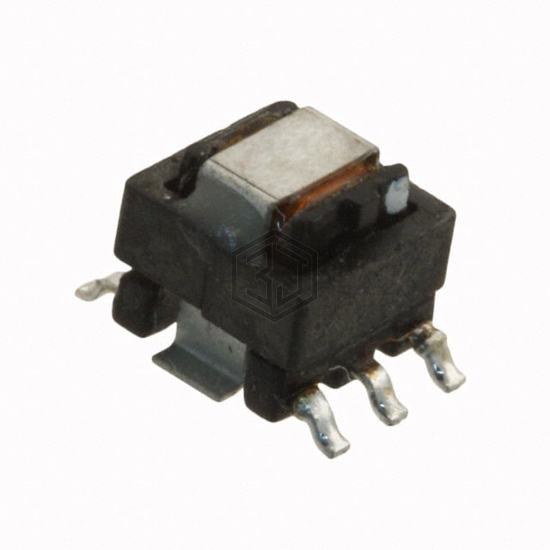

B82801B0925A200 is a Current Sense Transformers manufactured by EPCOS - TDK Electronics. CURR SENSE XFMR 1:200 20A SMD. Key specifications: mounting type Surface Mount, current rating (amps) 20 A, size / dimension 0.280" L x 0.320" W (7.11mm x 8.13mm), termination style Gull Wing.
In Stock: 7,184
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | 20 A |
| Inductance | 8 mH |
| ET (Volt-Time) | 100VµS |
| Turns Ratio - Primary:Secondary | 1:200 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.6mOhm Primary, 33.24Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.280" L x 0.320" W (7.11mm x 8.13mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Termination Style | Gull Wing |
Submit your RFQ for B82801B0925A200 and get a quote within 24 hours.
