TRANSFORMER CURRENT SENSE SMD

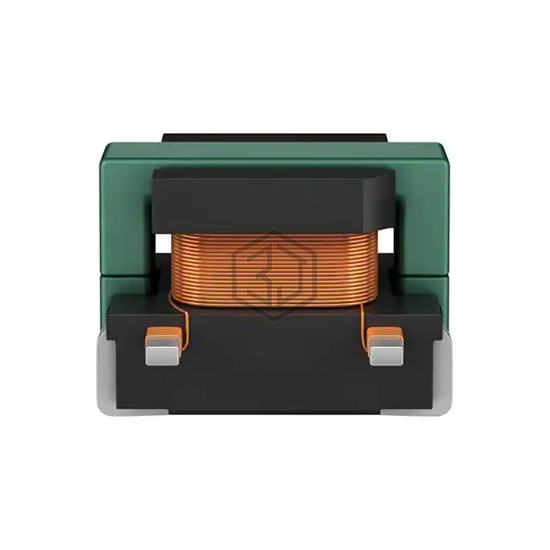

B82801A1185A150 is a Current Sense Transformers manufactured by EPCOS - TDK Electronics. TRANSFORMER CURRENT SENSE SMD. Key specifications: mounting type Surface Mount, size / dimension 0.185" L x 0.138" W (4.70mm x 3.50mm), termination style J Lead, frequency range 50kHz ~ 1MHz.
In Stock: 321
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 1.84 mH |
| ET (Volt-Time) | 43.2VµS |
| Turns Ratio - Primary:Secondary | 1:150 |
| Current Ratio | - |
| DC Resistance (DCR) | 2.5mOhm Primary, 21Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.185" L x 0.138" W (4.70mm x 3.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Termination Style | J Lead |
Submit your RFQ for B82801A1185A150 and get a quote within 24 hours.
