CURR SENSE XFMR 1:70 7A SMD

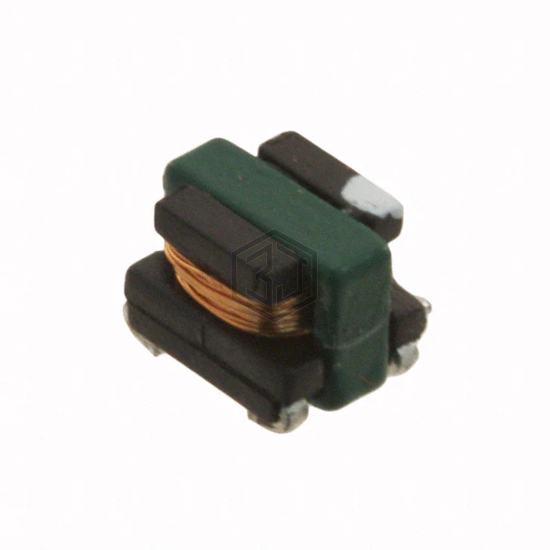

B82801A0404A070 is a Current Sense Transformers manufactured by EPCOS - TDK Electronics. CURR SENSE XFMR 1:70 7A SMD. Key specifications: mounting type Surface Mount, current rating (amps) 7 A, size / dimension 0.185" L x 0.138" W (4.70mm x 3.50mm), termination style J Lead.
In Stock: 2,822
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | 7 A |
| Inductance | 400 µH |
| ET (Volt-Time) | 20VµS |
| Turns Ratio - Primary:Secondary | 1:70 |
| Current Ratio | - |
| DC Resistance (DCR) | 2.5mOhm Primary, 4.6Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.185" L x 0.138" W (4.70mm x 3.50mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Termination Style | J Lead |
