CURR SENSE XFMR 1:125 SMD

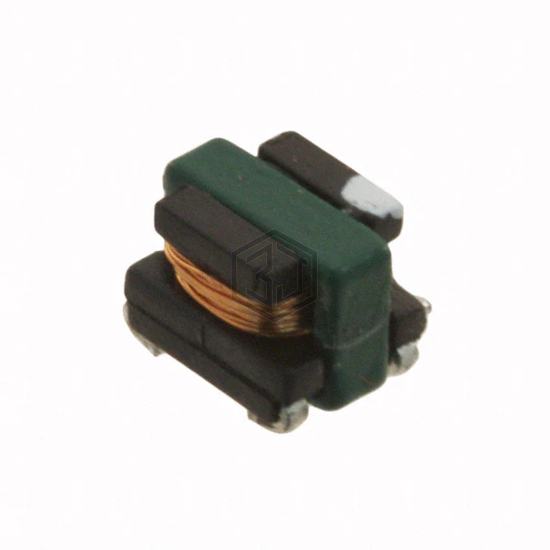

B82801A0135A125 is a Current Sense Transformers manufactured by EPCOS - TDK Electronics. CURR SENSE XFMR 1:125 SMD. Key specifications: mounting type Surface Mount, size / dimension 0.138" L x 0.185" W (3.50mm x 4.70mm), termination style J Lead, frequency range 50kHz ~ 1MHz.
In Stock: 8,799
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 1.28 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:125 |
| Current Ratio | - |
| DC Resistance (DCR) | 2.5mOhm Primary, 13Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.138" L x 0.185" W (3.50mm x 4.70mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Termination Style | J Lead |
Submit your RFQ for B82801A0135A125 and get a quote within 24 hours.
