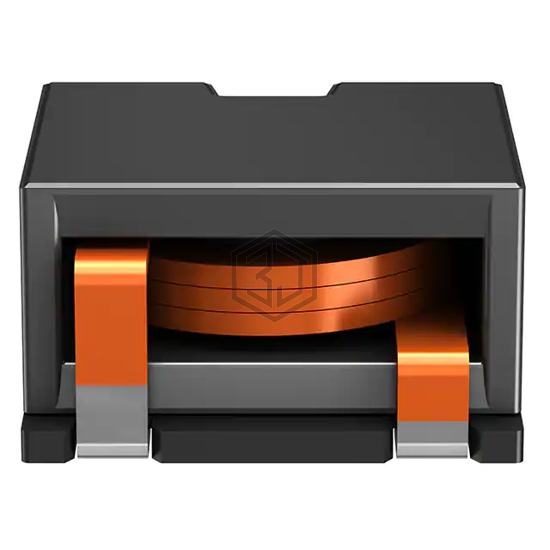

FIXED IND 10UH 33A 1.92 MOHM SMD
B82559B7103A027 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 10UH 33A 1.92 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 33 A.
In Stock: 524
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 33 A |
| Current - Saturation (Isat) | 34.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.92mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.094" L x 1.016" W (27.80mm x 25.80mm) |
| Height - Seated (Max) | 0.679" (17.25mm) |
Submit your RFQ for B82559B7103A027 and get a quote within 24 hours.
