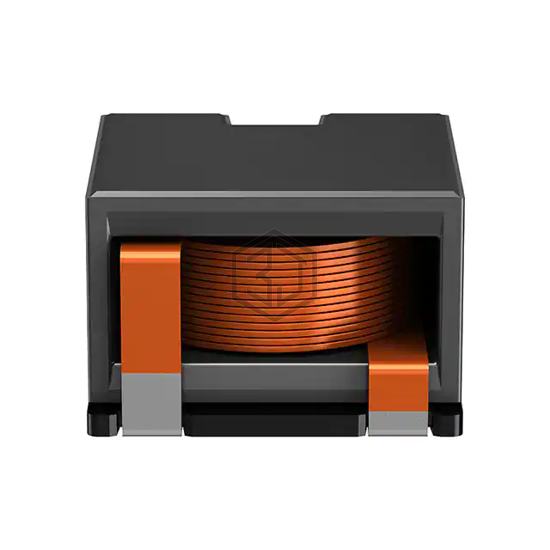

FIXED IND 4.7UH 25A 2.2 MOHM SMD
B82559B5472A016 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 4.7UH 25A 2.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, 3 Lead, current rating (amps) 25 A.
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 21.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.681" L x 0.650" W (17.30mm x 16.50mm) |
| Height - Seated (Max) | 0.407" (10.35mm) |
Submit your RFQ for B82559B5472A016 and get a quote within 24 hours.
