FIXED IND 3.3UH 42.5A 0.88 MOHM

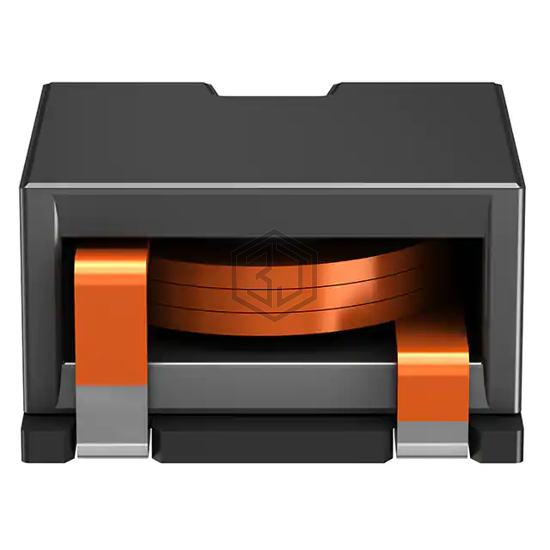

B82559B4332A027 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 3.3UH 42.5A 0.88 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 42.5 A.
In Stock: 615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 42.5 A |
| Current - Saturation (Isat) | 60.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.88mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.094" L x 1.016" W (27.80mm x 25.80mm) |
| Height - Seated (Max) | 0.600" (15.25mm) |
Submit your RFQ for B82559B4332A027 and get a quote within 24 hours.
