FIXED IND 2.2UH 27.2A 1.8MOHM SM

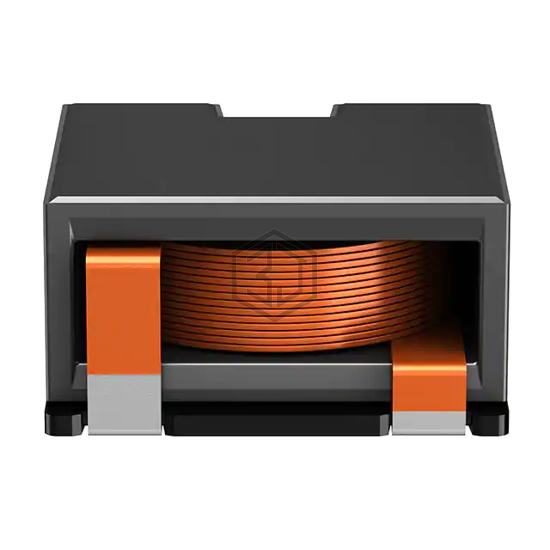

B82559B4222A019 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 2.2UH 27.2A 1.8MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, 3 Lead, current rating (amps) 27.2 A.
In Stock: 339
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 27.2 A |
| Current - Saturation (Isat) | 43.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.783" L x 0.728" W (19.90mm x 18.50mm) |
| Height - Seated (Max) | 0.378" (9.60mm) |
Submit your RFQ for B82559B4222A019 and get a quote within 24 hours.
