FIXED IND 2.2UH 46.5A 0.68 MOHM

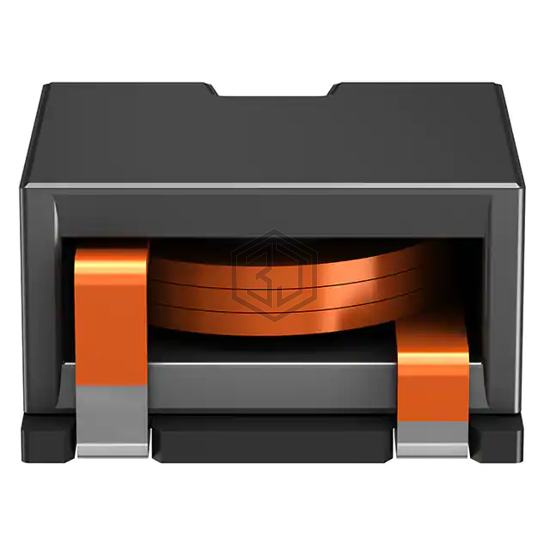

B82559B3222A027 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 2.2UH 46.5A 0.68 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 46.5 A.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 46.5 A |
| Current - Saturation (Isat) | 68A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.68mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.094" L x 1.016" W (27.80mm x 25.80mm) |
| Height - Seated (Max) | 0.545" (13.85mm) |
Submit your RFQ for B82559B3222A027 and get a quote within 24 hours.
