FIXED IND 1UH 36.3A 0.95MOHM SMD

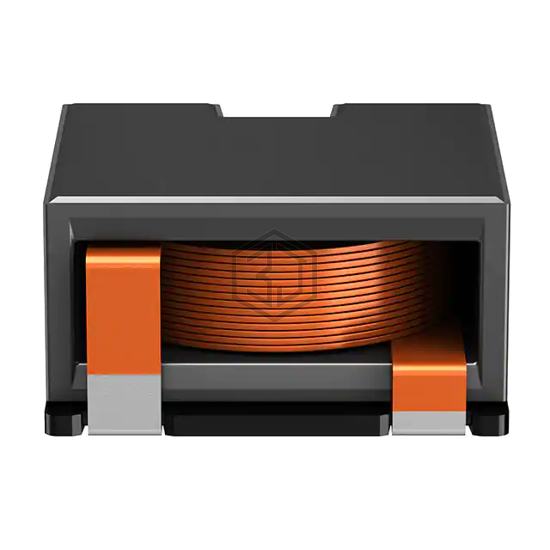

B82559B2102A019 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 1UH 36.3A 0.95MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, 3 Lead, current rating (amps) 36.3 A.
In Stock: 414
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 36.3 A |
| Current - Saturation (Isat) | 46.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.95mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.783" L x 0.728" W (19.90mm x 18.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for B82559B2102A019 and get a quote within 24 hours.
