FIXED IND 15UH 4.95 MOHM SMD

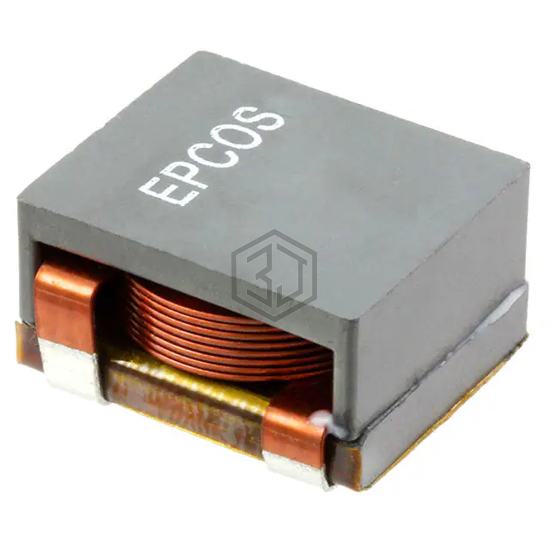

B82559A9153A020 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 15UH 4.95 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, size / dimension 0.846" L x 0.827" W (21.50mm x 21.00mm).
In Stock: 5,741
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 15.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.846" L x 0.827" W (21.50mm x 21.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
