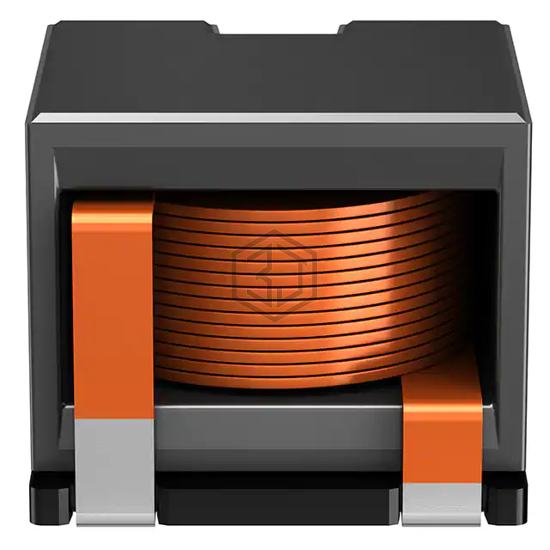

FIXED IND 6.8UH 35A 1.45MOHM SMD
B82559A7682A024 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 6.8UH 35A 1.45MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, 3 Lead, current rating (amps) 35 A.
In Stock: 127
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 35 A |
| Current - Saturation (Isat) | 37.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.45mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.972" L x 0.898" W (24.70mm x 22.80mm) |
| Height - Seated (Max) | 0.734" (18.65mm) |
Submit your RFQ for B82559A7682A024 and get a quote within 24 hours.
