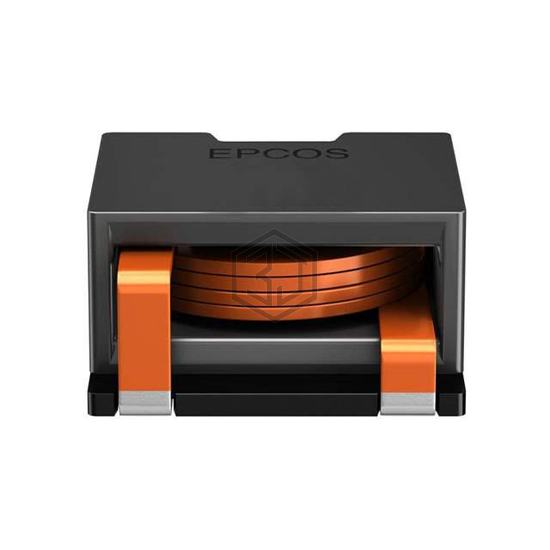

FIXED IND 3.3UH 2.7 MOHM SMD
B82559A5332A019 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 3.3UH 2.7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, 3 Lead, size / dimension 0.807" L x 0.807" W (20.50mm x 20.50mm).
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 27A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.807" L x 0.807" W (20.50mm x 20.50mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
Submit your RFQ for B82559A5332A019 and get a quote within 24 hours.
