FIXED IND 2.3UH 0.6 MOHM SMD

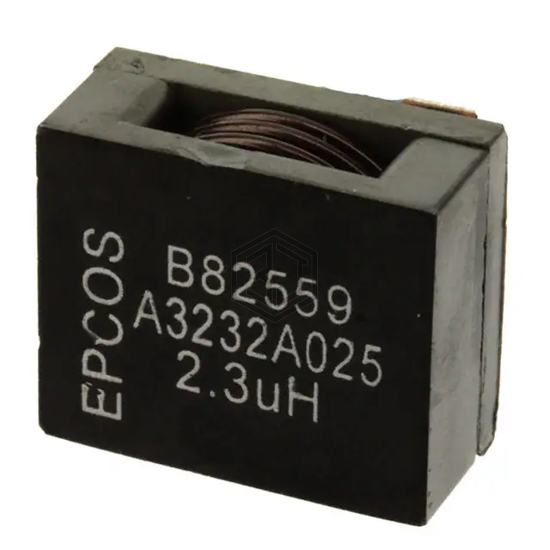

B82559A3232A025 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 2.3UH 0.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, size / dimension 0.996" L x 0.925" W (25.30mm x 23.50mm).
In Stock: 155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.3 µH |
| Tolerance | ±7% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 41A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.996" L x 0.925" W (25.30mm x 23.50mm) |
| Height - Seated (Max) | 0.520" (13.20mm) |
Submit your RFQ for B82559A3232A025 and get a quote within 24 hours.
