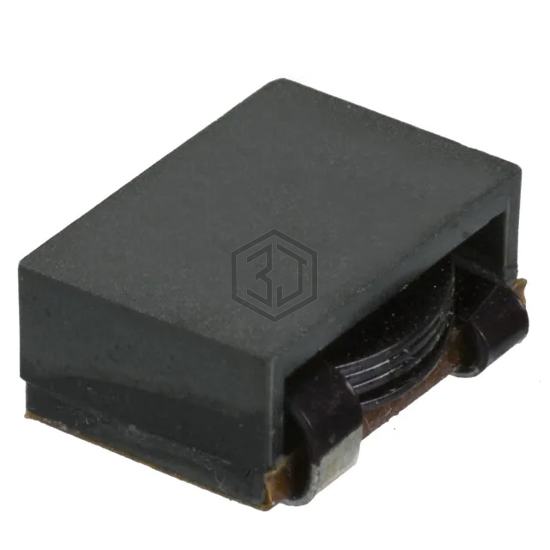

FIXED IND 950NH 25A 1.12MOHM SMD
B82559A0951A013 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 950NH 25A 1.12MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 4,903
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 950 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.12mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.421" W (13.00mm x 10.70mm) |
| Height - Seated (Max) | 0.234" (5.95mm) |
Submit your RFQ for B82559A0951A013 and get a quote within 24 hours.
