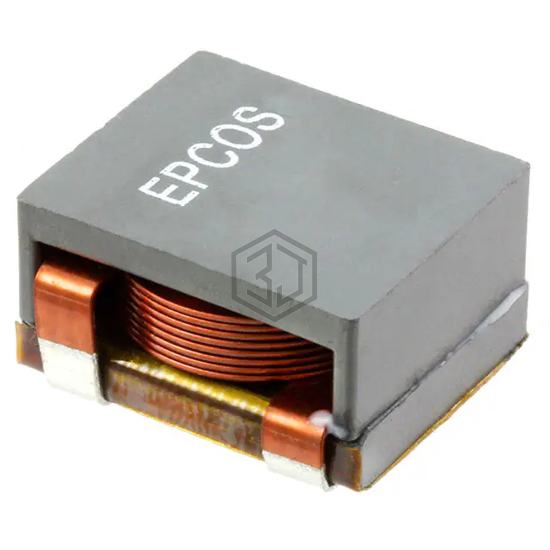

FIXED IND 29UH 7 MOHM SMD
B82559A0293A020 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 29UH 7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, size / dimension 0.878" L x 0.866" W (22.30mm x 22.00mm).
In Stock: 241
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 29 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.878" L x 0.866" W (22.30mm x 22.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
