FIXED IND 2.4UH 16.5A 2.76 MOHM

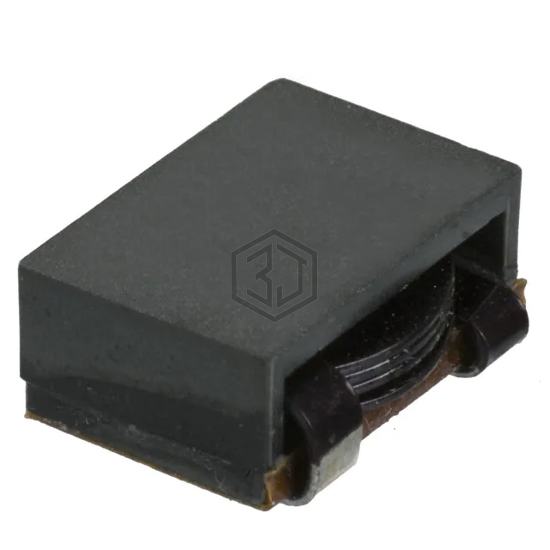

B82559A0242A013 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 2.4UH 16.5A 2.76 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 16.5 A.
In Stock: 5,434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.4 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 16.5 A |
| Current - Saturation (Isat) | 16.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.76mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.421" W (13.00mm x 10.70mm) |
| Height - Seated (Max) | 0.234" (5.95mm) |
Submit your RFQ for B82559A0242A013 and get a quote within 24 hours.
