FIXED IND 20UH 10A 13.25MOHM SMD

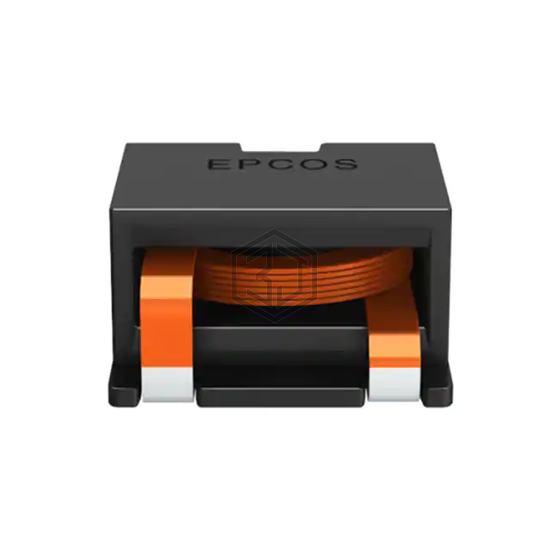

B82559A0203A016 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 20UH 10A 13.25MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, 3 Lead, current rating (amps) 10 A.
In Stock: 700
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 20 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 11.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.25mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.736" L x 0.681" W (18.70mm x 17.30mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
Submit your RFQ for B82559A0203A016 and get a quote within 24 hours.
