FIXED IND 120NH 440MA 310MOHM SM

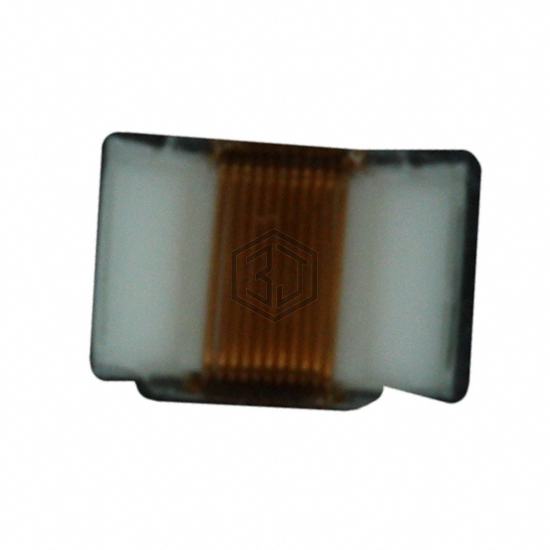

B82498F3121J000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 120NH 440MA 310MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 440 mA.
In Stock: 1,121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 120 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 440 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 310mOhm Max |
| Q @ Freq | 50 @ 250MHz |
| Frequency - Self Resonant | 1.25GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.091" L x 0.067" W (2.30mm x 1.70mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
